Export Your Schema

Before you Begin

If you have not already done so, analyze your schema:

Once your schema has been analyzed, use the following procedure to export your schema.

Steps

1

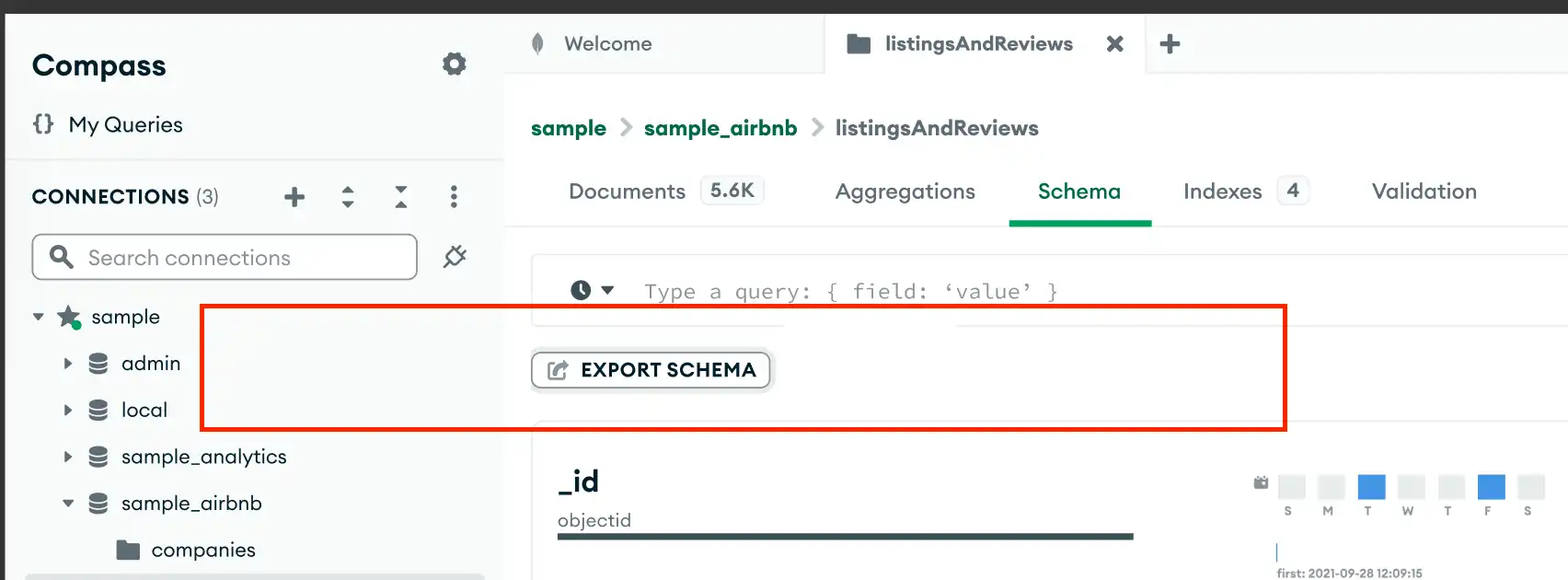

Click Export Schema.

undefined

The Export Schema button appears in the top-left corner of the viewport.

2

Select the export format.

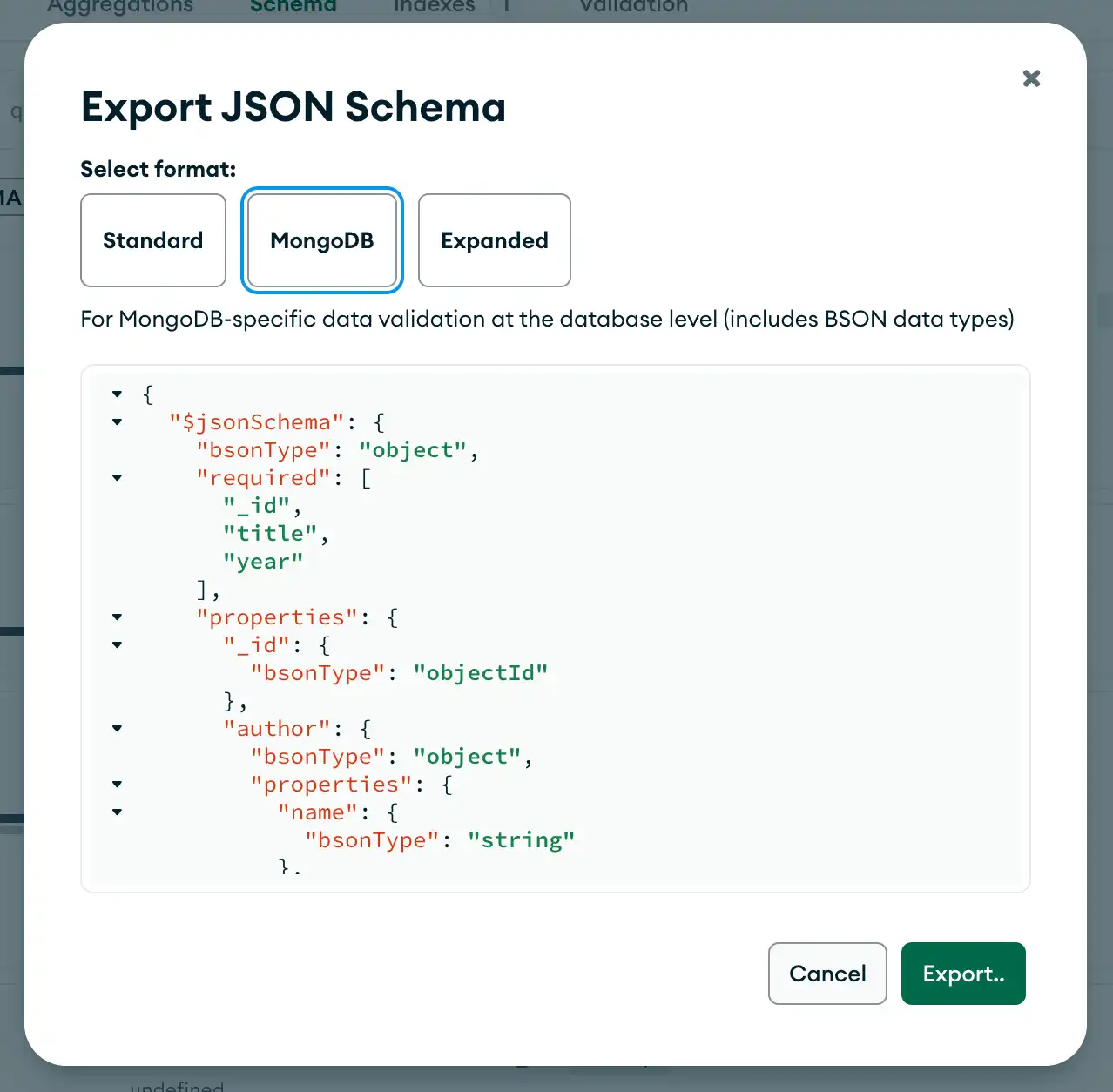

In the Export JSON Schema modal, select the format to export to.

You can export your schema to the following formats:

• Standard format
• MongoDB format
• Expanded format

3

Save your schema.

Select the location on your filesystem to save your schema to.

Standard Format Schema Object Properties

Standard format schema objects contain the following fields:

This is not an exhaustive list of all possible fields. For details on additional fields, see the official JSON Schema spec.

MongoDB Format Schema Object Properties

MongoDB format schema objects contain the following fields:

This is not an exhaustive list of all possible fields. For details on additional fields, see the official JSON Schema spec.

Expanded Format Schema Object Properties

Expanded format schema objects contain these fields in addition to the Standard Schema fields:

This is not an exhaustive list of all possible fields. For details on additional fields, see the official JSON Schema spec.

Limitations

Compass cannot export a schema that has more than 1000 distinct fields. If you try to export a schema with more than 1000 distinct fields, Compass returns an error.

Example Schema

The following example uses a collection of 3 documents, each with a title field and unique information about that movie:

1
[
2
  {
3
    "_id": { "$oid": "573a1390f29313caabcd6223" },
4
    "title": "The Poor Little Rich Girl",
5
    "plot": "Gwen's family is rich, but her parents ignore her and most of the serv...",
6
    "year": 1917,
7
  },
8
  {
9
    "_id": { "$oid": "573a1391f29313caabcd7616" },
10
    "title": "Salomè",
11
    "plot": "Salome, the daughter of Herodias, seduces her step-father/uncle Herod, ...",
12
    "year": 1922,
13
    "genres": [ "drama", "horror" ]
14
  },
15
  {
16
    "_id": { "$oid": "573a1392f29313caabcd9c1b" },
17
    "title": "Payment Deferred",
18
    "year": 1932,
19
  },
20
]
You can import the above example to MongoDB Compass to experiment with schema outputs. To import the example collection into MongoDB Compass:
1

Copy the JSON documents to your clipboard.
Copy the above JSON documents.
2

Select a collection.
In MongoDB Compass, select a collection or create a new collection to import the copied documents to. The Documents tab displays.
3

Click Add Data.
4

Select Insert Document from the dropdown.
5

Paste the documents.
In the JSON view of the dialog, paste the copied documents and click Insert.
The example above outputs the following schema:


1
{
2
  "$schema": "https://json-schema.org/draft/2020-12/schema",
3
  "type": "object",
4
  "required": [
5
    "_id",
6
    "title",
7
    "year"
8
  ],
9
  "properties": {
10
    "_id": {
11
      "$ref": "#/$defs/ObjectId"
12
    },
13
    "genres": {
14
      "type": "array",
15
      "items": {
16
        "type": "string"
17
      }
18
    },
19
    "plot": {
20
      "type": "string"
21
    },
22
    "title": {
23
      "type": "string"
24
    },
25
    "year": {
26
      "type": "integer"
27
    }
28
  },
29
  "$defs": {
30
    "ObjectId": {
31
      "type": "object",
32
      "properties": {
33
        "$oid": {
34
          "type": "string",
35
          "pattern": "^[0-9a-fA-F]{24}$"
36
        }
37
      },
38
      "required": [
39
        "$oid"
40
      ],
41
      "additionalProperties": false
42
    }
43
  }
44
}
1
{
2
  "$jsonSchema": {
3
    "bsonType": "object",
4
    "required": [
5
      "_id",
6
      "title",
7
      "year"
8
    ],
9
    "properties": {
10
      "_id": {
11
        "bsonType": "objectId"
12
      },
13
      "genres": {
14
        "bsonType": "array",
15
        "items": {
16
          "bsonType": "string"
17
        }
18
      },
19
      "plot": {
20
        "bsonType": "string"
21
      },
22
      "title": {
23
        "bsonType": "string"
24
      },
25
      "year": {
26
        "bsonType": "int"
27
      }
28
    }
29
  }
30
}
Sample values are limited to the first 100 characters.
1
{
2
  "type": "object",
3
  "x-bsonType": "object",
4
  "required": [
5
    "_id",
6
    "title",
7
    "year"
8
  ],
9
  "properties": {
10
    "_id": {
11
      "$ref": "#/$defs/ObjectId",
12
      "x-bsonType": "objectId",
13
      "x-metadata": {
14
        "hasDuplicates": false,
15
        "probability": 1,
16
        "count": 3
17
      },
18
      "x-sampleValues": [
19
        "573a1391f29313caabcd7616",
20
        "573a1392f29313caabcd9c1b",
21
        "573a1390f29313caabcd6223"
22
      ]
23
    },
24
    "genres": {
25
      "type": "array",
26
      "x-bsonType": "array",
27
      "x-metadata": {
28
        "hasDuplicates": true,
29
        "probability": 0.3333333333333333,
30
        "count": 1
31
      },
32
      "items": {
33
        "type": "string",
34
        "x-bsonType": "string",
35
        "x-metadata": {
36
          "hasDuplicates": false,
37
          "probability": 1,
38
          "count": 2
39
        },
40
        "x-sampleValues": [
41
          "drama",
42
          "horror"
43
        ]
44
      }
45
    },
46
    "plot": {
47
      "type": "string",
48
      "x-bsonType": "string",
49
      "x-metadata": {
50
        "hasDuplicates": false,
51
        "probability": 0.6666666666666666,
52
        "count": 2
53
      },
54
      "x-sampleValues": [
55
        "Salome, the daughter of Herodias, seduces her step-father/uncle Herod, ...",
56
        "Gwen's family is rich, but her parents ignore her and most of the serv..."
57
      ]
58
    },
59
    "title": {
60
      "type": "string",
61
      "x-bsonType": "string",
62
      "x-metadata": {
63
        "hasDuplicates": false,
64
        "probability": 1,
65
        "count": 3
66
      },
67
      "x-sampleValues": [
68
        "Salomè",
69
        "Payment Deferred",
70
        "The Poor Little Rich Girl"
71
      ]
72
    },
73
    "year": {
74
      "type": "integer",
75
      "x-bsonType": "int",
76
      "x-metadata": {
77
        "hasDuplicates": false,
78
        "probability": 1,
79
        "count": 3
80
      },
81
      "x-sampleValues": [
82
        1922,
83
        1932,
84
        1917
85
      ]
86
    }
87
  },
88
  "$defs": {
89
    "ObjectId": {
90
      "type": "object",
91
      "properties": {
92
        "$oid": {
93
          "type": "string",
94
          "pattern": "^[0-9a-fA-F]{24}$"
95
        }
96
      },
97
      "required": [
98
        "$oid"
99
      ],
100
      "additionalProperties": false
101
    }
102
  }
103
}
